Ex: Web Based Token System

1. Add a new Web Form "Bank.aspx"

2. Source Code  "Bank.aspx.cs"

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using SpeechLib;
using System.Threading;

namespace BankTokenSystemWeb
{
    public partial class Bank : System.Web.UI.Page
    {
        public void Voice()
        {
            SpVoice spk = new SpVoice();
            spk.Speak(lblScreen.Text);
        }

        protected void Page_Load(object sender, EventArgs e)
        {
            if (Session["TokenQueue"] == null)
            {
                Queue<int> queueTokens = new Queue<int>();
                Session["TokenQueue"] = queueTokens;
            }
        }

        protected void Button1_Click(object sender, EventArgs e)
        {
            Queue<int> tokenQueue = (Queue<int>)Session["TokenQueue"];
            if (Session["LstTokenNumberIssued"] == null)
            {
                Session["LstTokenNumberIssued"] = 0;
            }
            int NextTokeTobeIssued = (int)Session["LstTokenNumberIssued"] + 1;
            Session["LstTokenNumberIssued"] = NextTokeTobeIssued;
            tokenQueue.Enqueue(NextTokeTobeIssued);

            AddTokenToListBox(tokenQueue);
        }

        private void AddTokenToListBox(Queue<int> tokenQueue)
        {
            lstToken.Items.Clear();
            foreach (int token in tokenQueue)
            {
                lstToken.Items.Add(token.ToString());
            }
        }
        private void ServeNextCustomer(TextBox textbox, int counterNumber)
        {
            Queue<int> tokenQueue = (Queue<int>)Session["TokenQueue"];
            if (tokenQueue.Count == 0)
            {
                textbox.Text = "No customers in queue";
            }
            else
            {
                int tokenTobeServed = tokenQueue.Dequeue();
                textbox.Text = tokenTobeServed.ToString();
                lblScreen.Text = "Token Number " + tokenTobeServed.ToString() + "Go To Counter Number" + counterNumber.ToString();
                Voice();
                AddTokenToListBox(tokenQueue);
            }
        }
        protected void Counter1Next_Click(object sender, EventArgs e)
        {
            ServeNextCustomer(txtCounter1, 1);
        }

        protected void Counter2Next_Click(object sender, EventArgs e)
        {
            ServeNextCustomer(txtCounter2, 2);
        }

        protected void Counter3Next_Click(object sender, EventArgs e)
        {
            ServeNextCustomer(txtCounter3, 3);
        }
    }
}

ASP.NET MVC - Part 2

ASP.NET MVC - Part 1    ASP.NET MVC - Part 2

Creating a new MVC Application

New Project from the Start page, you can use the menu and select File > New Project.

1. File → New → Project → Select "Visual C#" → Go to Web Category →

Select "ASP.NET Web Application.

2. Name the application as "MvcDemo" → Click OK

3. Select "MVC" template in project dialog.

4. Add folders and core references for MVC  and click "OK".

ASP.NET MVC - Part 1

ASP.NET MVC - Part 1    ASP.NET MVC - Part 2

Design Patterns

Design patterns are solutions to software design problems you find again and again in real-world application development. Patterns are about reusable designs and interactions of objects.

 A design pattern isn't a finished design that can be transformed directly into code. It is a description or template for how to solve a problem that can be used in many different situations.

Design patterns can speed up the development process by providing tested, proven development paradigms. Effective software design requires considering issues that may not become visible until later in the implementation. Reusing design patterns helps to prevent subtle issues that can cause major problems and improves code readability for coders and architects familiar with the patterns.

The 23 Gang of Four (GoF) patterns are generally considered the foundation for all other patterns. They are categorized in three groups:

¨  Creational,

¨  Structural, and

¨  Behavioral

Creational Design Patterns

These design patterns are all about class instantiation. This pattern can be further divided into class-creation patterns and object-creational patterns. While class-creation patterns use inheritance effectively in the instantiation process, object-creation patterns use delegation effectively to get the job done.

Abstract Factory	Creates an instance of several families of classes
Builder	Separates object construction from its representation
Factory Method	Creates an instance of several derived classes
Prototype	A fully initialized instance to be copied or cloned
Singleton	A class of which only a single instance can exist

Structural Patterns

These design patterns concern class and object composition. Concept of inheritance is used to compose interfaces and define ways to compose objects to obtain new functionalities.

Adapter	Match interfaces of different classes
Bridge	Separates an object’s interface from its implementation
Composite	A tree structure of simple and composite objects
Decorator	Add responsibilities to objects dynamically
Facade	A single class that represents an entire subsystem
Flyweight	A fine-grained instance used for efficient sharing
Proxy	An object representing another object

Behavioral Patterns

These design patterns are specifically concerned with communication between objects.  By doing so, these patterns increase flexibility in carrying out this communication.

Chain of Resp.	A way of passing a request between a chain of objects
Command	Encapsulate a command request as an object
Interpreter	A way to include language elements in a program
Iterator	Sequentially access the elements of a collection
Mediator	Defines simplified communication between classes
Memento	Capture and restore an object's internal state
Observer	A way of notifying change to a number of classes
State	Alter an object's behavior when its state changes
Strategy	Encapsulates an algorithm inside a class
Template Method	Defer the exact steps of an algorithm to a subclass
Visitor	Defines a new operation to a class without change

Architectural Patterns

An architectural style, sometimes called an architectural pattern, is a set of principles—a coarse grained pattern that provides an abstract framework for a family of systems. An architectural style improves partitioning and promotes design reuse by providing solutions to frequently recurring problems.

MVC

The Model-View-Controller (MVC) architectural pattern separates an application into three main components: the model, the view, and the controller.

¨  Model–view–controller (MVC) is a software architecture pattern

¨  Originally formulated in the late 1970s by Trygve Reenskaug as part of the Smalltalk

¨  Code reusability and separation of concerns

¨  Originally developed for desktop, then adapted for internet applications



Model

¨  Set of classes that describes the data we are working with as well as the business

¨  Rules for how the data can be changed and manipulated

¨  May contain data validation rules

¨  Often encapsulate data stored in a database as well as code used to manipulate the data

¨  Most likely a Data Access Layer of some kind

¨  Apart from giving the data objects, it doesn't have significance in the framework

View

¨  Defines how the application’s user interface (UI) will be displayed

¨  May support master views (layouts) and sub-views (partial views or controls)

¨  Web: Template to dynamically generate HTML

Controller

¨  The core MVC component

¨  Process the requests with the help of views and models

¨  A set of classes that handles

¤  Communication from the user

¤  Overall application flow

¤  Application-specific logic

¨  Every controller has one or more "Actions"

MVC Frameworks

PHP	Cake PHP, Code Igniter
Java	Spring
Perl	Catalyst, Dancer
Python	Django, Flask, Grok
Ruby	Ruby on Rails, Camping, Nitro, Sinatra
Java Script	Angular JS, JavaScript MVC, Spine
.NET Framework	ASP.NET MVC

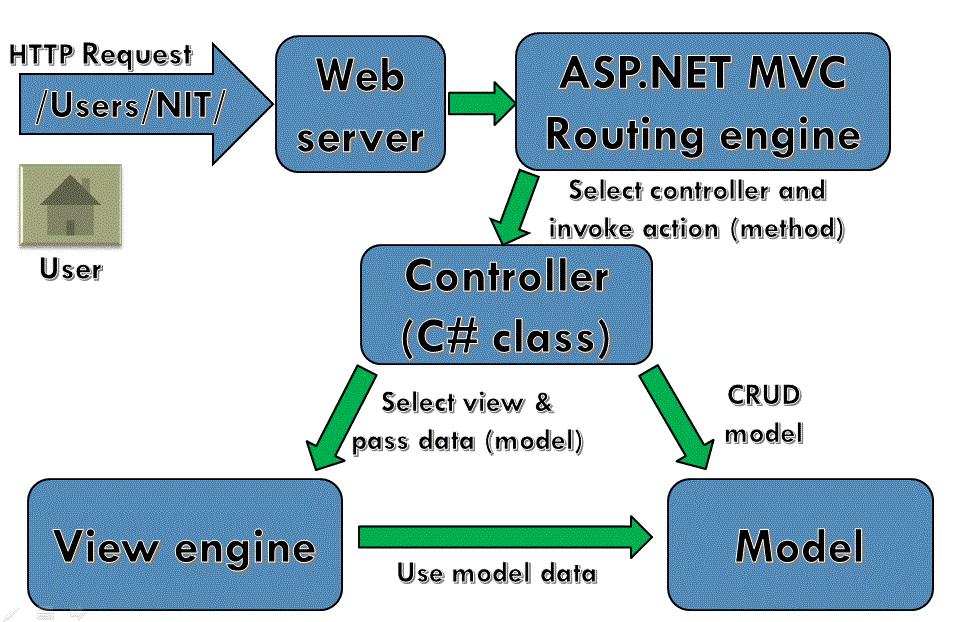

The MVC Pattern for Web

¨  Incoming request routed to Controller

¤  For web: HTTP request

¨  Controller processes request and creates presentation Model

¤  Controller also selects appropriate result (view)

¨  Model is passed to View

¨  View transforms Model into appropriate output format (HTML)

¨  Response is rendered (HTTP Response)

Stage	Details
Receive first request for the application	In the Global.asax file, Route objects are added to the RouteTable object.
Perform routing	The UrlRoutingModule module uses the first matching Route object in theRouteTable collection to create the RouteData object, which it then uses to create aRequestContext (IHttpContext) object.
Create MVC request handler	The MvcRouteHandler object creates an instance of the MvcHandler class and passes it the RequestContext instance.
Create controller	The MvcHandler object uses the RequestContext instance to identify theIControllerFactory object (typically an instance of the DefaultControllerFactoryclass) to create the controller instance with.
Execute controller	The MvcHandler instance calls the controller s Execute method.
Invoke action	Most controllers inherit from the Controller base class. For controllers that do so, theControllerActionInvoker object that is associated with the controller determines which action method of the controller class to call, and then calls that method.
Execute result	A typical action method might receive user input, prepare the appropriate response data, and then execute the result by returning a result type. The built-in result types that can be executed include the following: ViewResult (which renders a view and is the most-often used result type), RedirectToRouteResult, RedirectResult,ContentResult, JsonResult, and EmptyResult.

Request Flow

ASP.NET Web Forms	ASP.NET MVC
Asp.Net Web Form follow a traditional event driven development model.	Asp.Net MVC is a lightweight and follow MVC (Model, View, Controller) pattern based development model.
Asp.Net Web Form has server controls.	Asp.Net MVC has html helpers.
Asp.Net Web Form supports view state for state management at client side.	Asp.Net MVC does not support view state.
Asp.Net Web Form has file-based URLs means file name exist in the URLs must have its physically existence.	Asp.Net MVC has route-based URLs means URLs are divided into controllers and actions and moreover it is based on controller not on physical file.
Asp.Net Web Form follows Web Forms Syntax	Asp.Net MVC follow customizable syntax (Razor as default)
In Asp.Net Web Form, Web Forms(ASPX) i.e. views are tightly coupled to Code behind(ASPX.CS) i.e. logic.	In Asp.Net MVC, Views and logic are kept separately.
Asp.Net Web Form has Master Pages for consistent look and feels.	Asp.Net MVC has Layouts for consistent look and feels.
Asp.Net Web Form has User Controls for code re-usability.	Asp.Net MVC has Partial Views for code re-usability.
Asp.Net Web Form has built-in data controls and best for rapid development with powerful data access.	Asp.Net MVC is lightweight, provide full control over markup and support many features that allow fast & agile development. Hence it is best for developing interactive web application with latest web standards.
Asp.Net Web Form is not Open Source.	Asp.Net Web MVC is an Open Source.

ASP.NET MVC Features

¨  Runs on top of ASP.NET

¤  Not a replacement for WebForms

¤  Leverage the benefits of ASP.NET

¨  Embrace the web

¤  User/SEO friendly URLs, HTML 5, SPA

¤  Adopt REST concepts

¨  Uses MVC pattern

¤  Conventions and Guidance

¤  Separation of concerns

¨  Tight control over markup

¨  Testable

¨  Loosely coupled and extensible

¨  Convention over configuration

¨  Razor view engine

¤  One of the greatest view engines

¤  With intellisense, integrated in Visual Studio

¨  Reuse of current skills (C#, LINQ, HTML, etc.)

¨  Application-based (not scripts like PHP)



Separation of Concerns

¨  Each component has one responsibility

¤  SRP – Single Responsibility Principle

¤  DRY – Don’t Repeat Yourself

¨  More easily testable

¤  TDD – Test-driven development

¨  Helps with concurrent development

¤  Performing tasks concurrently

n  One developer works on views

n  Another works on controllers

Extensible

¨  Replace any component of the system

¤  Interface-based architecture

¨  Almost anything can be replaced or extended

¤  Model binders (request data to CLR objects)

¤  Action/result filters (e.g. OnActionExecuting)

¤  Custom action result types

¤  View engine (Razor, WebForms, NHaml, Spark)

¤  View helpers (HTML, AJAX, URL, etc.)

¤  Custom data providers (ADO.NET), etc.



Clean URL’s

¨  REST-like

¤  /products/update

¤  /blog/posts/2014/11/28/mvc-is-cool

¨  Friendlier to humans

¤  /product.aspx?catId=123 or post.php?id=123

¤  Becomes /products/chocolate/

¨  Friendlier to web crawlers

¤  Search engine optimization (SEO)

ASP.NET MVC Release History

Date	Version
10 December 2007	ASP.NET MVC
13 March 2009	ASP.NET MVC 1.0
16 December 2009	ASP.NET MVC 2 RC
4 February 2010	ASP.NET MVC 2 RC 2
10 March 2010	ASP.NET MVC 2
6 October 2010	ASP.NET MVC 3 Beta
9 November 2010	ASP.NET MVC 3 RC
10 December 2010	ASP.NET MVC 3 RC 2
13 January 2011	ASP.NET MVC 3
20 September 2011	ASP.NET MVC 4 Developer Preview
15 February 2012	ASP.NET MVC 4 Beta
31 May 2012	ASP.NET MVC 4 RC
15 August 2012	ASP.NET MVC 4
30 May 2013	ASP.NET MVC 4 4.0.30506.0
26 June 2013	ASP.NET MVC 5 Preview
23 August 2013	ASP.NET MVC 5 RC 1
17 October 2013	ASP.NET MVC 5
17 January 2014	ASP.NET MVC 5.1
10 February 2014	ASP.NET MVC 5.1.1
4 April 2014	ASP.NET MVC 5.1.2
22 June 2014	ASP.NET MVC 5.1.3
1 July 2014	ASP.NET MVC 5.2.0
28 August 2014	ASP.NET MVC 5.2.2

What’s new in MVC 4?

¨  ASP.NET Web API

¨  Refreshed and modernized default project templates

¨  New mobile project template

¨  Many new features to support mobile apps

¨  Enhanced support for asynchronous methods

What’s new in MVC 5?

¨  Attribute routing improvements

¨  Bootstrap support for editor templates

¨  Enum support in views

¨  Unobtrusive validation for MinLength/MaxLength Attributes

¨  Supporting the ‘this’ context in Unobtrusive Ajax



What’s new in MVC 6?

Rebuilt from the Ground Up

¨  MVC, Web API, and Web Pages are merged into one framework, called MVC 6. The new framework uses a common set of abstractions for routing, action selection, filters, model binding, and so on.

¨  Dependency injection is built into the framework. Use your preferred IoC container to register dependencies.

¨  vNext is host agnostic. You can host your app in IIS, or self-host in a custom process. (Web API 2 and SignalR 2 already support self-hosting; vNext brings this same capability to MVC.)

¨  vNext is open source and cross platform.

Leaner, Faster

¨  MVC 6 has no dependency on System.Web.dll. The result is a leaner framework, with faster startup time and lower memory consumption.

¨  vNext apps can use a cloud-optimized runtime and subset of the .NET Framework. This subset of the framework is about 11 megabytes in size compared to 200 megabytes for the full framework, and is composed of a collection of NuGet packages.

¨  Because the cloud-optimized framework is a collection of NuGet packages, your app can include only the packages you actually need. No unnecessary memory, disk space, loading time, etc.

¨  Microsoft can deliver updates to the framework on a faster cadence, because each part can be updated independently.

True Side-by-Side Deployment

¨  The reduced footprint of the cloud-optimized runtime makes it practical to deploy the framework with your app.

¨  You can run apps side-by-side with different versions of the framework on the same server.

¨  Your apps are insulated from framework changes on the server.

¨  You can make framework updates for each app on its own schedule.

¨  No errors when you deploy to production resulting from a mismatch between the framework patch level on the development machine and the production server.

 New Development Experience

¨  vNext uses the Roslyn compiler to compile code dynamically.

¨  You can edit a code file, refresh the browser, and see the changes without rebuilding the project.

¨  Besides streamlining the development process, dynamic code compilation enables development scenarios that were not possible before, such as editing code on the server using Visual Studio Online (“Monaco”).

¨  You can choose your own editors and tools.
